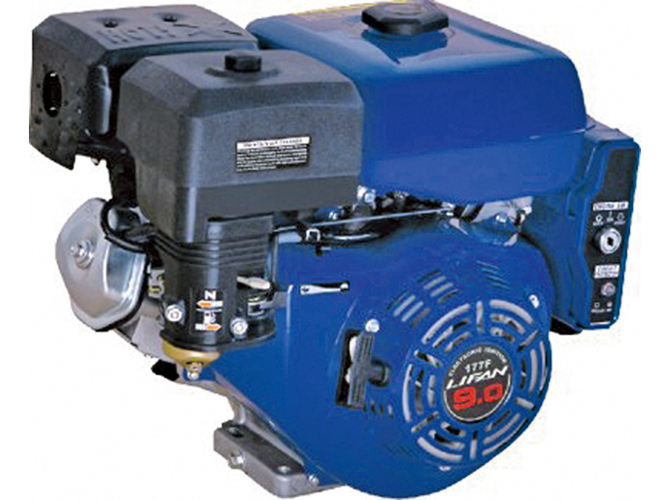

177FD

HORIZONTAL-UTILITY-ENGINES/177fd(9ps).
SPECIFICATION

Model: 177FD (CE/EC, EPA)(9PS)
Engine type: 4-stroke 25° single-cylinder with air-cooled
Bore*stroke: 77mm*58mm
Displacement: 270ml

Compression ratio: 8.2:1
Max power output: 6.6kw/3600rpm
Recommded power using: 5.7kw/3600rpm
Max torque: 15.5N.m/2500rpm
Ignition system: Non-contact transistorized ignition(TCI)
Start model: Recoil and hand-operated/electric
Air cleaner: Semi-dry oil bath type
Fuel tank capacity: 6.0L
Fuel consumption: 374g/kw.h
Engine oil capacity: 1.1L
Dimension(L*W*H mm): 378*428*408
Dry weight: 25kg
Carton dimension(L*W*H mm): 485*455*510
QTY/20GP: 222
QTY/40GP: 466
QTY/40HQ: 540
