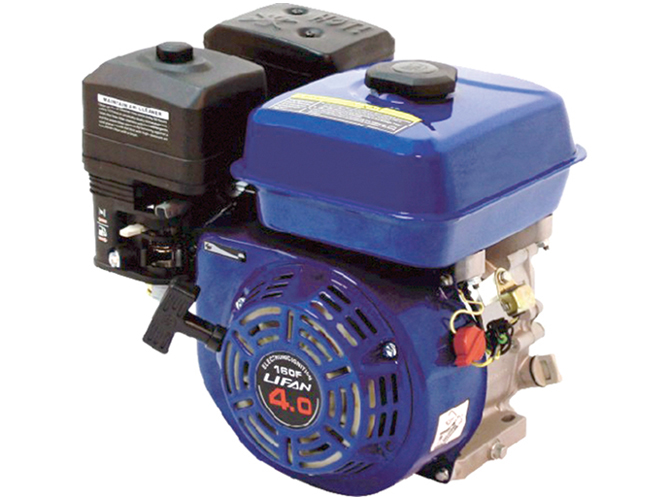

160F

HORIZONTAL-UTILITY-ENGINES/160F(4.0PS).
SPECIFICATION

Model: 160F(CE/EC, EPA)(4.0PS)
Engine type: 4-stroke 25° single-cylinder with air-cooled
Bore*stroke: 60mm*42mm
Displacement: 118ml

Compression ratio: 8.5:1
Max power output: 2.9kw/3600rpm
Recommend power using: 2.2kw/3600rpm
Max torque: 5.7N.m/3600rpm
Ignition system: Non-contact transistorized ignition(TCI)
Start model: Recoil and hand-operated
Air cleaner: Semi-dry oil bath type
Fuel tank capacity: 2.5L
Fuel consumption: 420g/kw.h
Engine oil capacity: 0.6L
Dimension(L*W*H mm): 306*343*320
Dry weight: 13kg
Carton dimension(L*W*H mm): 415*380*390
QTY/20GP: 504
QTY/40GP: 1008
QTY/40HQ: 1008
