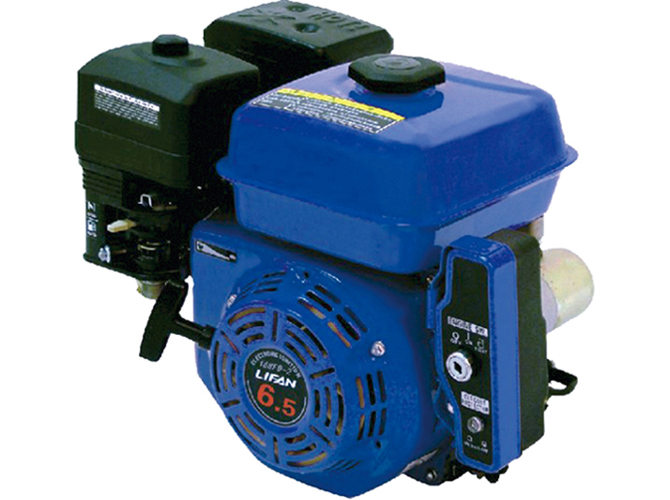

168F-2D

HORIZONTAL-UTILITY-ENGINES/168F-2D(6.5PS).
SPECIFICATION

Model: 168F-2D (CE/EC, EPA/CARB)(6.5PS)
Engine type: 4-stroke 25° single-cylinder with air-cooled
Bore*stroke: 68mm*54mm
Displacement: 196ml

Compression ratio: 8.5:1
Max power output: 4.8kw/3600rpm
Recommend power using: 4.0kw/3600rpm
Max torque: 11N.m/2500rpm
Ignition system: Non-contact transistorized ignition(TCI)
Start model: Recoil and hand-operated/electric
Air cleaner: Semi-dry oil bath type
Fuel tank capacity: 3.6L
Fuel consumption: 395g/kw.h
Engine oil capacity: 0.6L
Dimension(L*W*H mm): 312*375*336
Dry weight: 16kg
Carton dimension(L*W*H mm): 415*380*390
QTY/20GP: 504
QTY/40GP: 1008
QTY/40HQ: 1008
