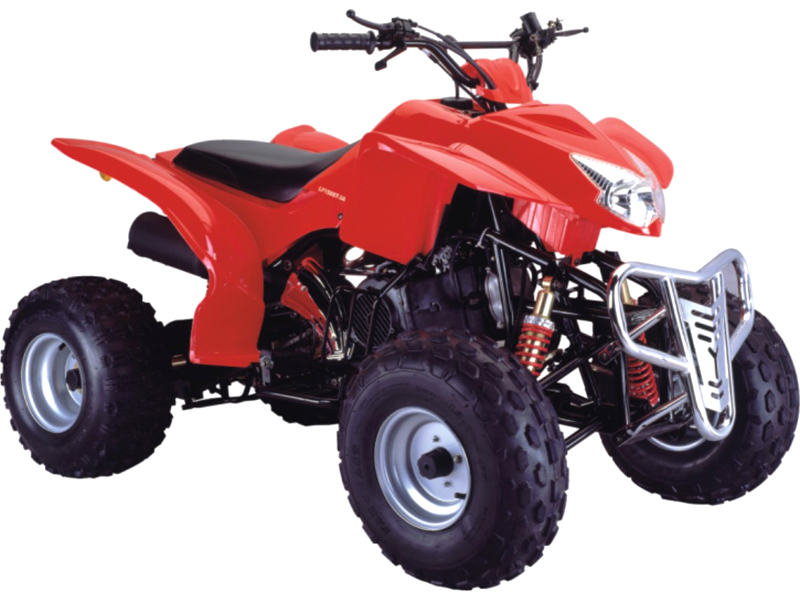

LF150ST-3A, LF150ST-3(Lifan 150cc)

ATV/LF150ST-3A-LF150ST-3(EPA).
LF150ST-3A,LF150ST-3(EPA)(Lifan 150cc)


SPECIFICATION
Motorcycle model: LF150ST-3A,LF150ST-3(EPA)

Dimension ((L×B×H mm): 1635*1050*1250
Wheel base (mm): 1135
Track(front/rear mm): 860/760
Min.Ground Clearance (mm): 240
Dry Weight: 145kg
Fuel Tank Capacity(L): 7
Engine Type:Single-cylinder, forced air-cooled,four-stroke,
Engine model: 1P57QMJ
Bore×Stroke: 57.4mm*57.8mm
Displacement: 149.6ml
Maximum Net Power: 6.4kw/7000r/min
Maximum Torque: 9.6N.m/6000r/min
Clutch: Dry auto-centrifugal
Lubrication: Pressure/splash
Start: Electric start/kick start
Ignition: C.D.I
Transmission: automatic with reverse
Max. Speed (km/h): 60km/h
Front Type Size and Air Pressure: 19×7-8
Rear Type Size and Air Pressure: 18×9.5-8
Exhaust Index: CO≤3.8%;HC≤800ppm
Start Performance: ≤15s
Braking system (front/rear): disk or drum/disk
Brake Performance: ≤7m/30km/h
