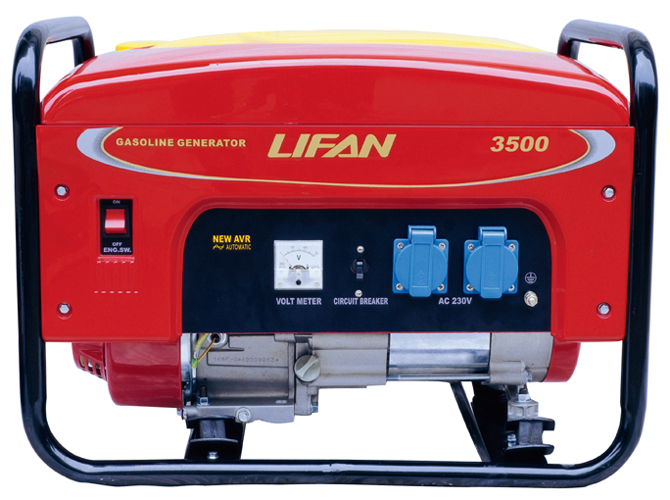

2200/3500(X3 PATTERN)

GASOLINE-GENERATOR-SET-60Hz/3500_2200-20-X3
2200/3500 (CSA,EPA/CARB)
SPECIFICATION
Model: 2200/3500 (CSA, EPA/CARB)(X3 PATTERN) Engine:
Type: 4-stroke forced-cooled single-cylinder OHV
Model: 168F/168F-2
Ignition system: Non-contact transistorized
Displacement: 163c.c/196c.c
Fuel tank capacity: 15L(3.96 US Gal)
Oil capacity: 0.6L(20 fl oz)
Run time on 50﹪load: 21hr/15hr
DC Output:
Voltge: 12V
Amperage: 8.3A

AC Output:
Rated wattage: 1800W/3000W
Surge wattage: 2200W/3500W
Rated voltage: 120V/240V
Rated amperage: 15A/7.5A/25A/12.5A
Rated frequency: 60Hz
Phase: Single
Ref datas of transportation:
Dimension(L*W*H in): 23.25” ×17” ×17”
Dry mass: 90LBS/99LBS
Carton dimension(L*W*H mm): 645*490*490
QTY/20GP: 160
QTY/40GP: 336
QTY/40HQ: 420
