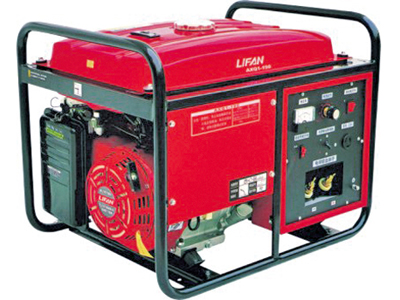

AXQ1-190(EPA/CARB)
SPECIFICATION
Model: AXQ1-190(EPA/CARB)

Engine:
Engine model: 188F/188FD
Engine type: 4-stroke 25°single-cylinder with air-cooled
Bore*Stroke: 88mm*64mm
Displacement: 389ml
Compression ratio: 8.0:1
Max. power output: 13Hp/3600rpm(9.5kw/3600r/min)
Recommend power using: 10.6Hp/3600rpm(7.8kw/3600r,min)
Max torque: 23N.m/2500rpm
Ignition system: Non-contact transistorized magneto ignition(TCI)
Start model: Recoil and hand-operated/electric
Air-cleaner: Semi-dry oil bath type
Fuel tank capacity: 25L
Fuel consumption: 374g/kw.h
Engine oil capacity: 1.1L



Generator:
Phase: single-phase
Rated output voltage (V): 220
Rated power output (KVA): 2.0KVA/50HZ , 3.0KVA/60HZ
Welder:
Rated volt (V): 26
Rated current (A): 140
Adjusting range in current (A): 50-190
Rated loading continuity: 50%
Electrode (mm): 2.0-5.0
Ref datas of transportation:
Dimension (L*W*Hmm): 680*510*490
N.W: 88kg
Carton dimension(L*W*H mm): 730*590*530
QTY/20GP: 96
QTY/40GP: 208
QTY/40HQ: 320
