Lifan Thailand

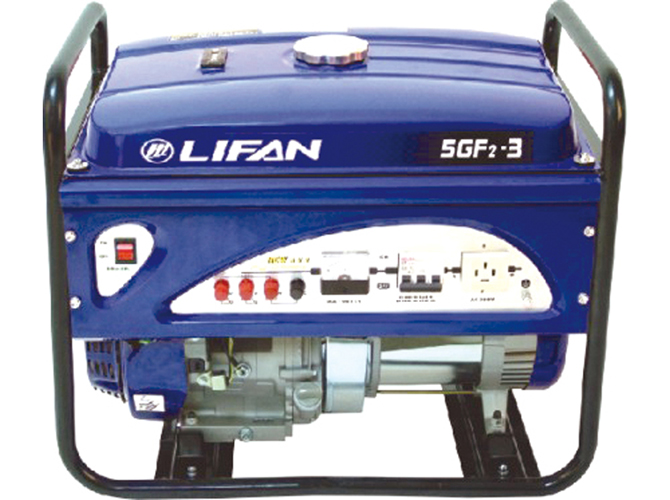

5GF2-3 (EPA/CARB)(5.0KVA)
Model: 5GF2-3 (EPA/CARB)(5.0KVA)

Type: 4-stroke forced-cooled single-cylinder OHV
Model: 188F
Displacement: 389ml
Max. power ouput: 9.5kw/3600rpm
Ignition system: Non-contact transistorized magneto
Starting system: Manual
Recommend power using: 8.2kw/3600rpm
Fuel tank capacity: 25L
Fuel consumption: 2.7L/hr
Continous operating hour: 9hr
Oil capacity: 1.1L
Noise(7meters away): 74dB


Rated output frequency: 50Hz
Rated output voltage: 220V/380V
Rated power output: 5.0KVA
Max. power output: 5.5KVA

Ref datas of transportation:
Dimension (L*W*H mm): 680*510*540
N.W: 82kg
Carton dimension(L*W*H mm): 730*575*595
QTY/20GP: 96
QTY/40GP: 192
QTY/40HQ: 256

Standard Features:
Large-capacity air cieaner:  .
Large-capacity fuel tank:  .
Large-capacity muffle:  .
Fuel indicator: .
Voltmeter: .
Auto voltage adjuster:  .
Oil alert system: . .
Circuit breaker with out fuse:  .
Circuit protector: -
Battery tray:  .
4-wheel dolly kit:  .
