6GF-3/6GF-4

GASOLINE-GENERATOR-SET-50Hz/6gf-3
6GF-3/6GF-4 (EPA/CARB)(6.0KVA)
SPECIFICATION

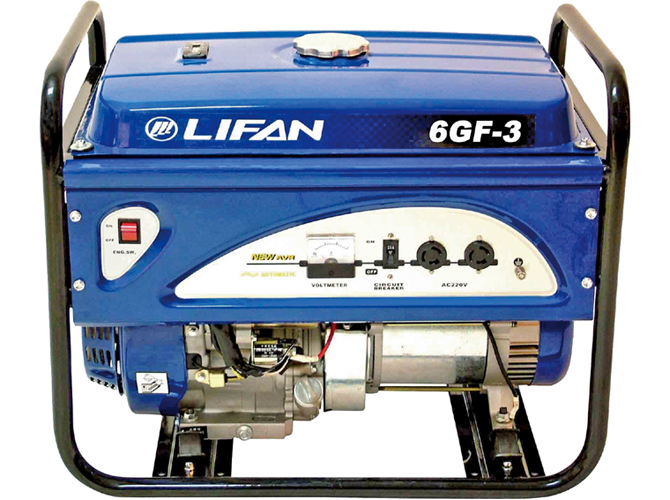

Model:  6GF-3 (EPA/CSA)(Remote Start)

Engine:
Type: 4-stroke forced-cooled single-cylinder OHV
Model: 190F
Displacement: 420ml
Max. power ouput: 10.5kw/3600rpm
Ignition system: Non-contact

transistorized magneto (TCI)
Starting system: Manual
Recommend power using: 8.5kw/3600rpm
Fuel tank capacity: 25L
Fuel consumption: 4.0L/hr
Continous operating hour: 6.0hr
Oil capacity: 1.1L
Noise(7meters away): 74dB



Generator:
Rated output frequency: 50Hz/60Hz
Rated AC voltage: 220V/240V
Rated AC output: 6.0KVA/7.0KVA
Max. power output: 6.5KVA/8.0KVA
Ref datas of transportation:
Dimension (L*W*H mm): 680*510*540
N.W: 88kg
Carton dimension(L*W*H mm): 730*575*595
QTY/20GP: 96
QTY/40GP: 192
QTY/40HQ: 256

Standard Features:
Large-capacity air cieaner: .
Large-capacity fuel tank: .
Large-capacity muffle:  .
Fuel indicator: .
Voltmeter: .
Auto voltage regulator: .
Oil alert system: .
Circuit breaker with out fuse: .
Circuit protector: -
Opfions:
Battery tray: -
4-wheel dolly kit: .
Model: 6GF-4 (EPA/CSA)

Engine:
Type: 4-stroke forced-cooled single-cylinder OHV
Model: 190FD
Displacement: 420ml
Max. power ouput: 10.5kw/3600rpm
Ignition system: Non-contact transistorized magneto (TCI)
Starting system: Manual/Electric
Recommend power using: 8.5kw/3600rpm
Fuel tank capacity: 25L
Fuel consumption: 4.0L/hr
Continous operating hour: 6.0hr
Oil capacity: 1.1L
Noise(7meters away): 74dB

Generator:
Rated output frequency: 50Hz/60Hz
Rated AC voltage: 220V/240V
Rated AC output: 6.0KVA/7.0KVA
Max. power output: 6.5KVA/8.0KVA
Ref datas of transportation:
Dimension (L*W*H mm): 680*510*540
N.W: 90kg
Carton dimension(L*W*H mm): 730*575*595
QTY/20GP: 96
QTY/40GP: 192
QTY/40HQ: 256

Standard Features:
Large-capacity air cieaner: .
Large-capacity fuel tank: .
Large-capacity muffle: .
Fuel indicator: .
Voltmeter: .
Auto voltage regulator: .
Oil alert system: .
Circuit breaker with out fuse: .
Circuit protector: -

Opfions:
Battery tray: .
4-wheel dolly kit: .
