40ZB15-1.4Q/50ZB20-1.4Q (EPA/CARB)
SPECIFICATION

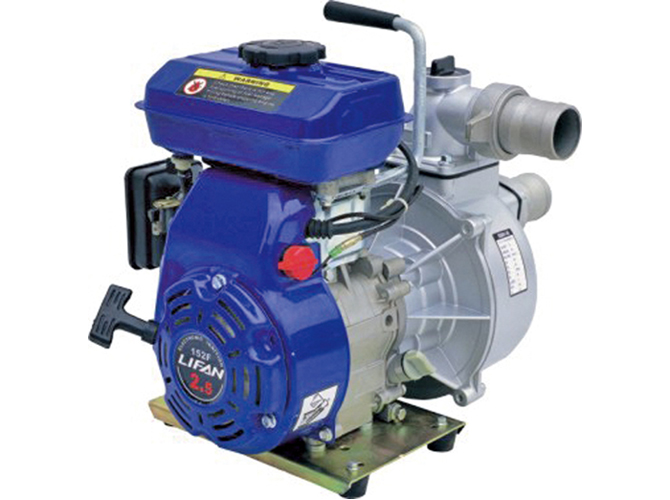

Water pump model: 40ZB15-1.4Q(EPA/CARB)
Name: Gasoline engine self-primed centrifugal pump

Engine model: 152F
Max output: 1.4kw
Nominal diameter: 40mm(1.5”)
Pump delivery: 9m3/h
Pump lift: 15m
Run speed: 4200r/min
Efficiency: 48%
Suction height: 4m
Suction time: 120sec
Dimension(L×W×Hmm):340×298×380
Weight: 12kg
Carton dimension(L×W×H mm): 360×320×410
QTY/20GP: 580
QTY/40GP: 1190
QTY/40HQ: 1429

Water pump model: 50ZB20-1.4Q(EPA/CARB)
Name: Gasoline engine self-primed centrifugal pump
Engine model: 152F
Max output: 1.4kw
Nominal diameter: 50mm(2”)
Pump delivery: 9m3/h
Pump lift: 20m
Run speed: 3600r/min
Efficiency: 48%
Suction height: 4m
Suction time: 120sec
Dimension(L×W×Hmm):405×298×380
Weight: 15kg
Carton dimension(L×W×H mm): 425×315×395
QTY/20GP: 490
QTY/40GP: 1010
QTY/40HQ: 1212
