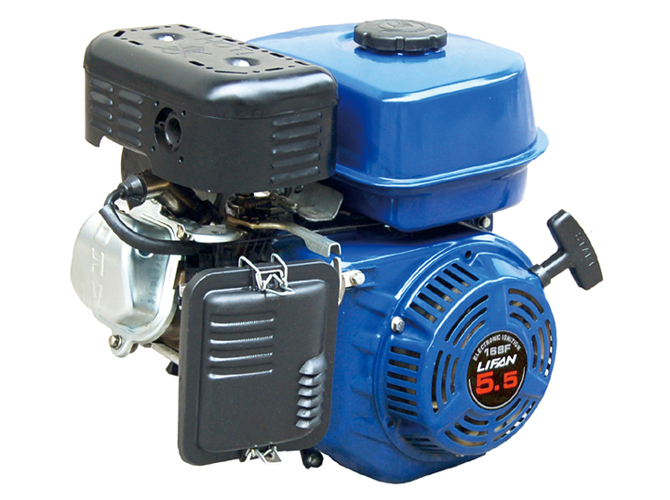

168F

GENERATION-III-ENGINE/168F
SPECIFICATION
Model: 168F (CE/EC, EPA/CARB)(5.5PS)
Engine type: 4-stroke 25° single-cylinder with air-cooled
Bore*stroke: 68mm*45mm
Displacement: 163ml

Compression ratio: 8.5:1
Max power output: 4.0kw/3600rpm
Recommend power using: 3.4kw/3600rpm
Max torque: 10N.m/2500rpm
Ignition system: Non-contact transistorized ignition(TCI)
Start model: Recoil and hand-operated/electric
Air cleaner: Semi-dry oil bath type
Fuel tank capacity: 3.6L
Fuel consumption: 395g/kw.h
Engine oil capacity: 0.6L
Dimension(L*W*H mm): 312*365*334
Dry weight: 15kg/15.5kg
Carton dimension(L*W*H mm): 415*380*390
QTY/20GP: 504
QTY/40GP: 1008
QTY/40HQ: 1008
